The big date shows the day of the month in numerals far larger than a standard date window, using two discs, one for the units and one for the tens. It entered wristwatches in 1994 with the Lange 1 from A. Lange & Söhne, and its inspiration was a clock on a stage in Dresden. The through-line is that a clock built to be read from an auditorium had to be fitted onto a wrist.
A model of the five-minute clock in Dresden’s Semperoper: its oversized digits inspired the Lange 1’s outsize date. Photo: Wikimedia Commons, CC BY-SA 3.0.
How it works
A date ring is a single disc with 31 numerals, and each numeral can be no wider than 360 degrees divided by 31, which is about 11.6 degrees of arc. On a 30 mm ring that is roughly 6 mm. Numerals three times larger cannot share one ring.
The solution is to split the number. A units disc carries the digits 0 to 9, and a tens disc carries 0 to 3. The two discs sit side by side in neighboring apertures. Each disc has to change at the right moment, and the sequences are not the same. The units disc advances every day, from 1 through 9 and 0, and then 1 again, and it does not move when the date goes from 31 to 1 because both digits are 1. The tens disc advances every ten days, and when the 3 is showing it moves on after two days, for the 30th and 31st.
Each disc has its own program wheel that sets when the disc moves, and a central date wheel indexes both. Jumper springs hold the discs between changes, and a spring stores energy through the day and releases it at midnight, so the date changes at once rather than crawling through the aperture. A mechanism that does this adds 66 components, against three for a simple date wheel that does not change instantaneously.
History as a chain of problems
The display was borrowed from a clock. Johann Christian Friedrich Gutkaes, whose son-in-law was Ferdinand Adolph Lange, built a five-minute clock for the Semper Opera House in Dresden, which opened on 12 April 1841. It has no dial or hands, and shows the time on numeral discs framed by two large windows, with hours in Roman numerals and minutes in five-minute steps. A fire in 1869 destroyed the opera house and the original clock, and Ludwig Teubner built a second clock in the rebuilding. The opera house was destroyed again in the Second World War, and a team led by Klaus Ferner and Harry Julitz spent more than six years building the third.
The auditorium clock of the Semperoper in Dresden, home of the five-minute clock that gave the Lange 1 its outsize date.
The manufacture founded by Lange in 1845 closed after the Second World War and was revived in 1990 by his great-grandson Walter Lange. The Lange 1 was presented on 24 October 1994 at the Dresden Residential Palace as one of four watches in the relaunch. It is described as the first wristwatch with a big date display.
Where it stands now

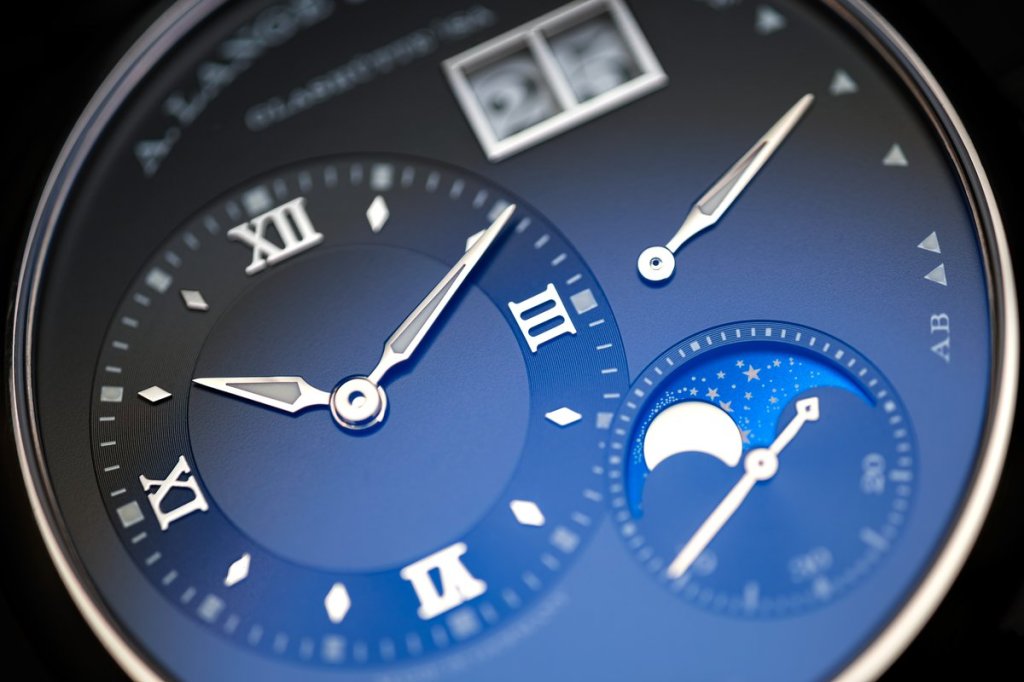

The digits sit in gold-framed apertures about three times larger than those in watches of comparable dimensions. The numerals would not fit a 38.5 mm case on one ring, so the Lange 1 uses a circular units disc and a cruciform tens disc, which rotate one above the other. A pusher at ten o’clock adjusts the date rather than the crown. The mechanism is patented and still used only by the brand.
Sources
- The Origins of the A. Lange & Söhne Outsize Date, Worldtempus
- The five-minute clock in the Semper Opera House and its 180-year history, A. Lange & Söhne
- Lange 1’s Big Date, Revolution
